KPI Widgets

Zoho Analytics offers a widget-based model for adding single numbered widgets and chart type widgets within dashboards. These are called KPI Widgets. This is a pretty useful feature to highlight any key metric in a dashboard for easy comprehension. The key metric can be accompanied with associated comparison indicator or plotted against a target to show progression.

• Label Widget
  • Single Label widgets
  • Label with Secondary Values
  • Label with Indicator
• Chart Widget
  • Bullet Chart widgets
  • Dial Chart Widget
  • Full Dial Chart Widget
• Widgets with Forecast
• Widgets with Images
  • Static Images in Widgets
  • Dynamic Images in Widgets
• Modifying Labels/Text in KPI Widgets

Label Widgets

Zoho Analytics offers a widget-based model for creating single number charts within dashboards. This is a pretty useful feature to highlight any key metric in a dashboard for easy comprehension. The key metric can also be accompanied with associated comparison indicators to highlight the trend. Zoho Analytics currents offers 6 types of single number widgets with or without comparison indicators.

Single Label Widget

Label with Secondary Value

Label with Indicator

Chart Type Widgets

Turn your KPI dashboards into more attractive visualizations using the Chart Type Widgets. Chart type widgets are similar to actual charts, except that only a single key metric value is plotted alongside a range, highlighting the current position of the key metric value.

You can create the following chart type widgets in Zoho Analytics:

Bullet Chart

A Bullet Chart is from the family of bar charts, where the key metric is plotted as a bar alongside a range, with a defined minimum and maximum values. You can specify qualitative ranges that are plotted as varying colors, to measure the progress of your key metric value. By default, the qualitative ranges are displayed as varying intensities of a single hue.

Refer to the following presentation to create a Bullet Chart widget.

Learn more about bullet charts.

Dial Charts

The Dial Chart is used to indicate the current value of a metric on a given range. Although similar to a Bullet Chart, it displays the values in the form of a semi-dial. You can specify qualitative ranges in Dial Charts as well.

Zoho Analytics offers the following types of dial charts:

Simple: The simple dial chart is a basic dial chart consisting of the chart range, target, key metric plot, and its value.

Speedometer: The speedometer is a type of dial chart that comes with an indicator to mark the position of the key metric value in a given range. By default, the qualitative ranges in the speedometer are NOT of the same hues. The color red, yellow, and green indicates your performance range.

Conditional: In a conditional dial chart, the color of your key metric plot is defined based on conditions. This will help you categorize the key metric values into different qualitative baskets.

Say, you want to measure the progress of your sales in a month. You can provide a color to be displayed as the default color and colors to represent the sales when reaching the 25% and 50% of the overall sales range. The default color will be the color of the key metric plot when the sales value is more than 50%.

The bullet chart and dial chart will help measure your current value, compared to your target value.

Refer to the following presentation to create a Dial Chart widget.

Full Dial Chart

Full Dial Chart is a gauge chart with a full ring. This is similar to the Dial Chart. The Maximum Range value will be set as the value of the full ring.

You can customize the view of the full dial chart by plotting the key metric plot to overlap the dial, outside the dial, or inside the dial.

Refer to the following presentation to create a Full Dial Chart widget.

KPI Widgets with Forecast

KPIs are beneficial to measure the progress towards your goals. By combining KPIs with forecasting, you can get a better understanding of how close you are to your goals, based on your current data trend.

KPI Widgets with Images

Images help process information far more efficiently than numbers and lengthy text descriptions. They also improve the visual appeal and aesthetics of the dashboard, and result in increased engagement and attention span from the users.

Zoho Analytics allows you to incorporate images to the widgets in the dashboard. This can be done in two ways in Zoho Analytics.

• Static Images in Widgets: These images are used to primarily indicate the type of data, and the information contained in the widget. The images do not change based on data fluctuations.
• Dynamic Images in Widgets: In this method, the data values are grouped by the Image column, resulting in images changing dynamically based on the groupings defined by the data in that column.

Creating Widgets with Static Images

1. Open the dashboard in Edit mode and click the Widget button.
2. Choose the suitable Widget Type.
3. Choose the Data Column for computing and the column to be used for Group By.

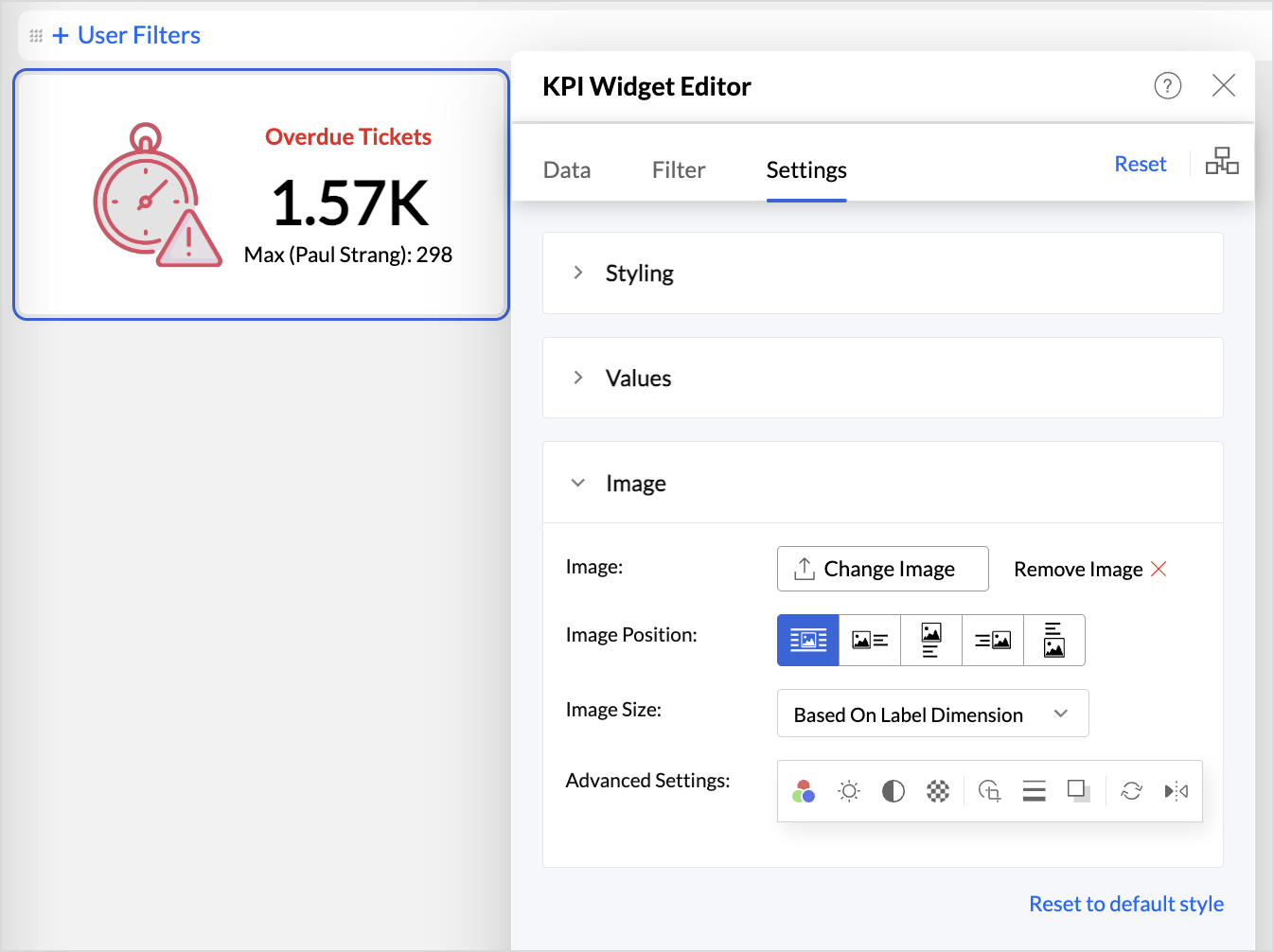

4. Access the Settings tab for widgets and click Image.
5. Click Choose Image. You can upload a locally stored image, gif or an image URL.
6. Customize the Image Position and Image Size. By default, the image is positioned at the center.

7. The Navigation bar below the Preview section provides the following customization options:

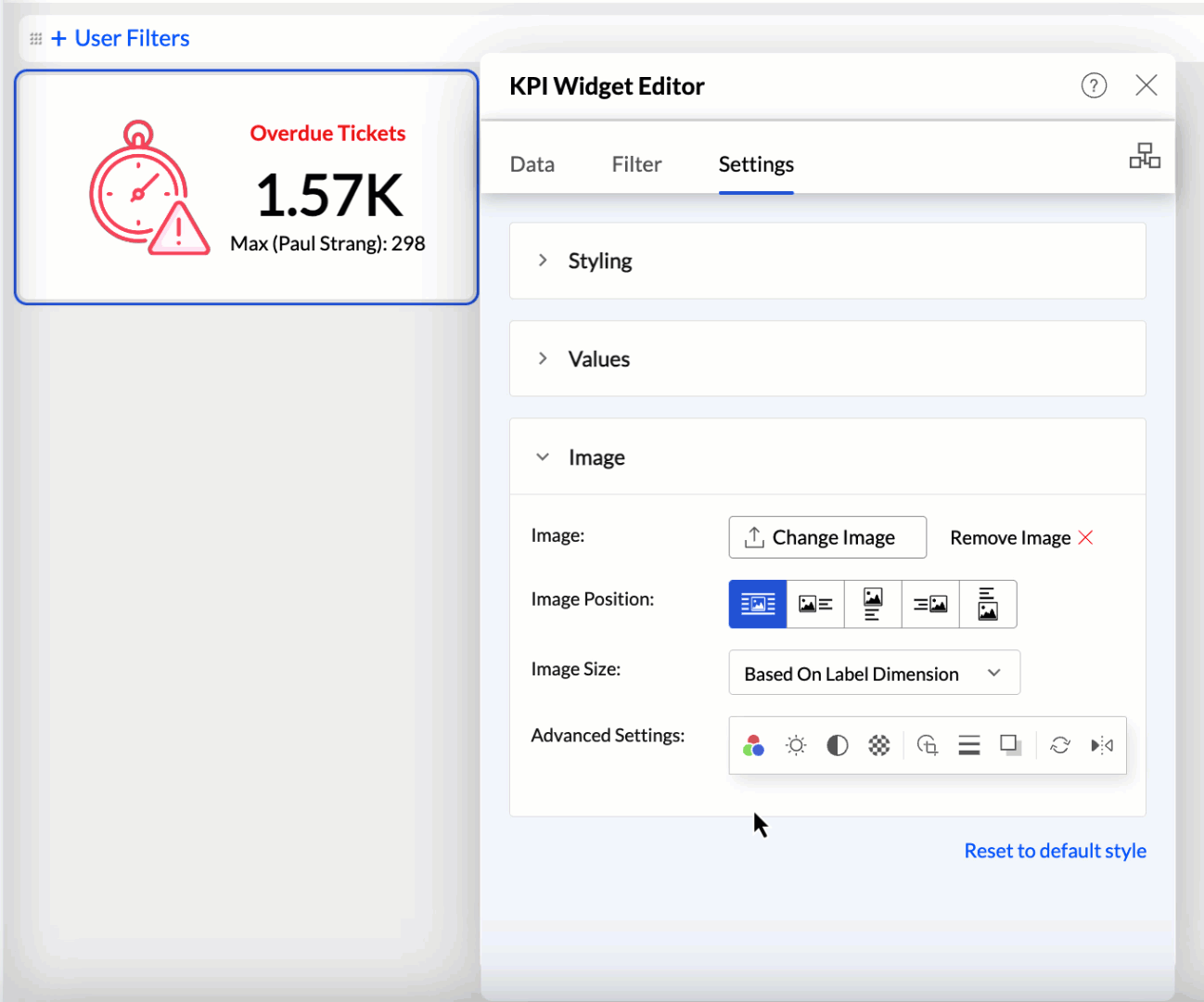

   • Easily change the color of the image to suit the dashboard color theme. You can also apply the Font color to the image.

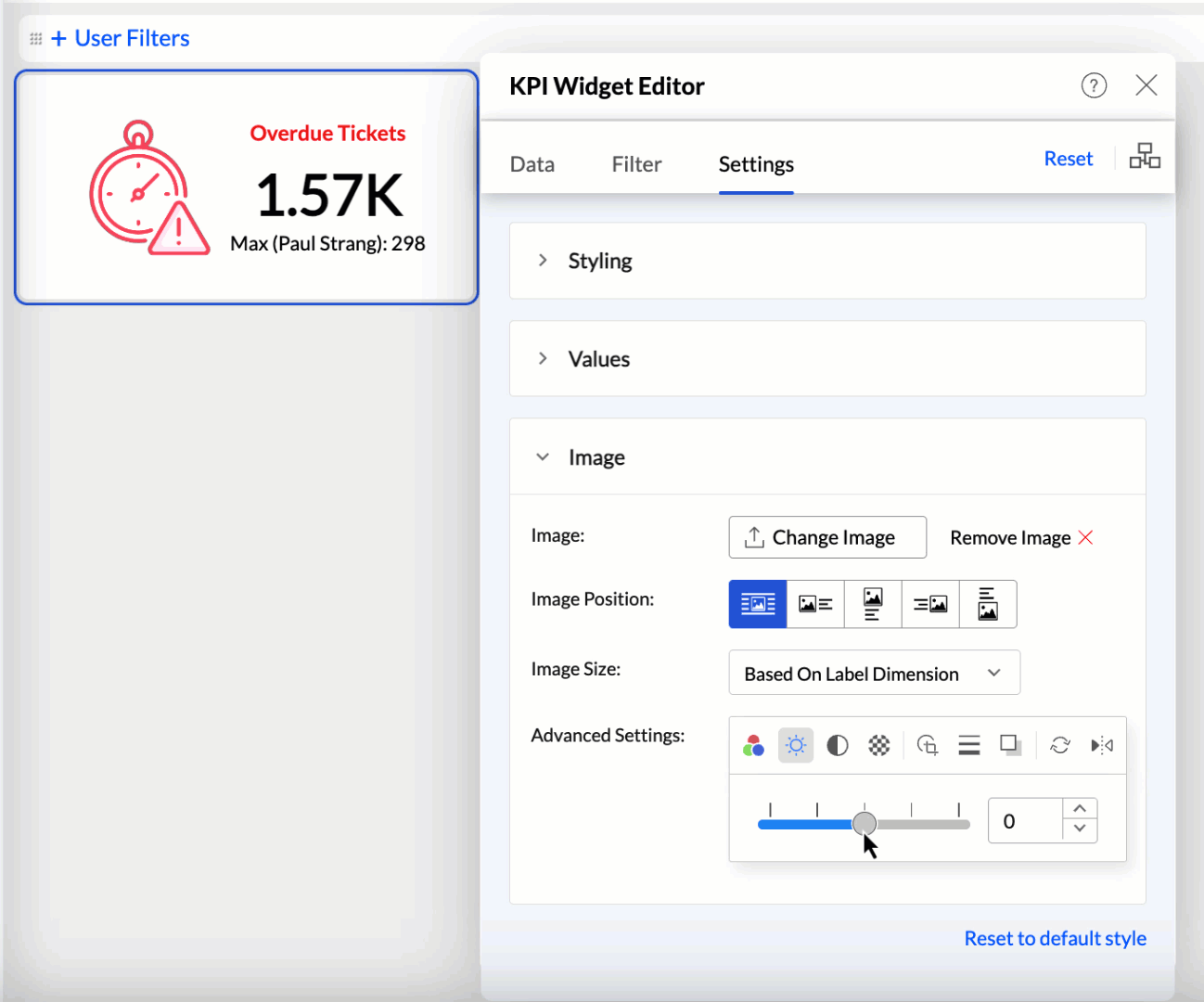

   • Adjust the Contrast, Brightness, and Transparency to enhance visibility of the image.

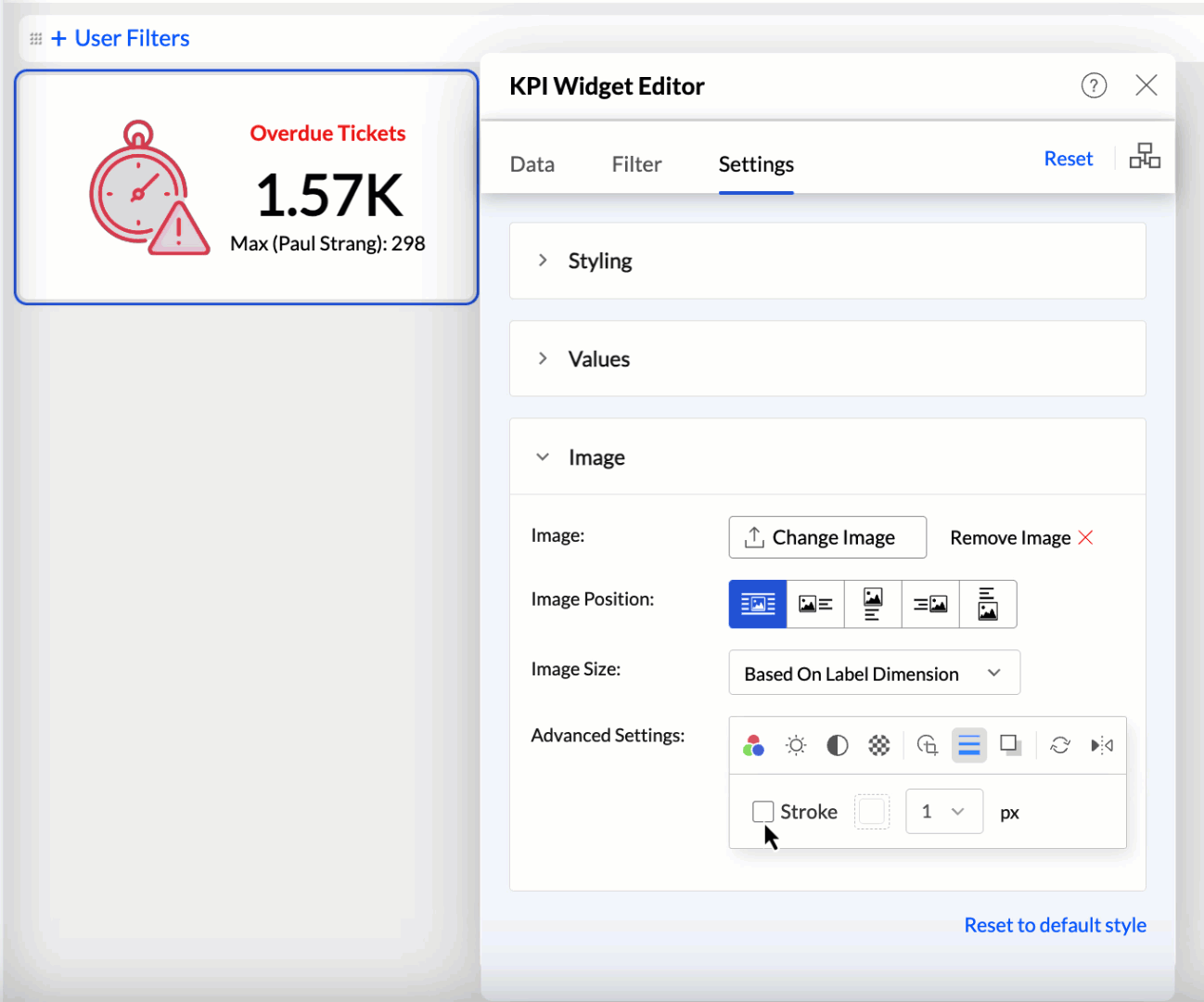

   • Include Stroke and Shadow to make the images more prominent.

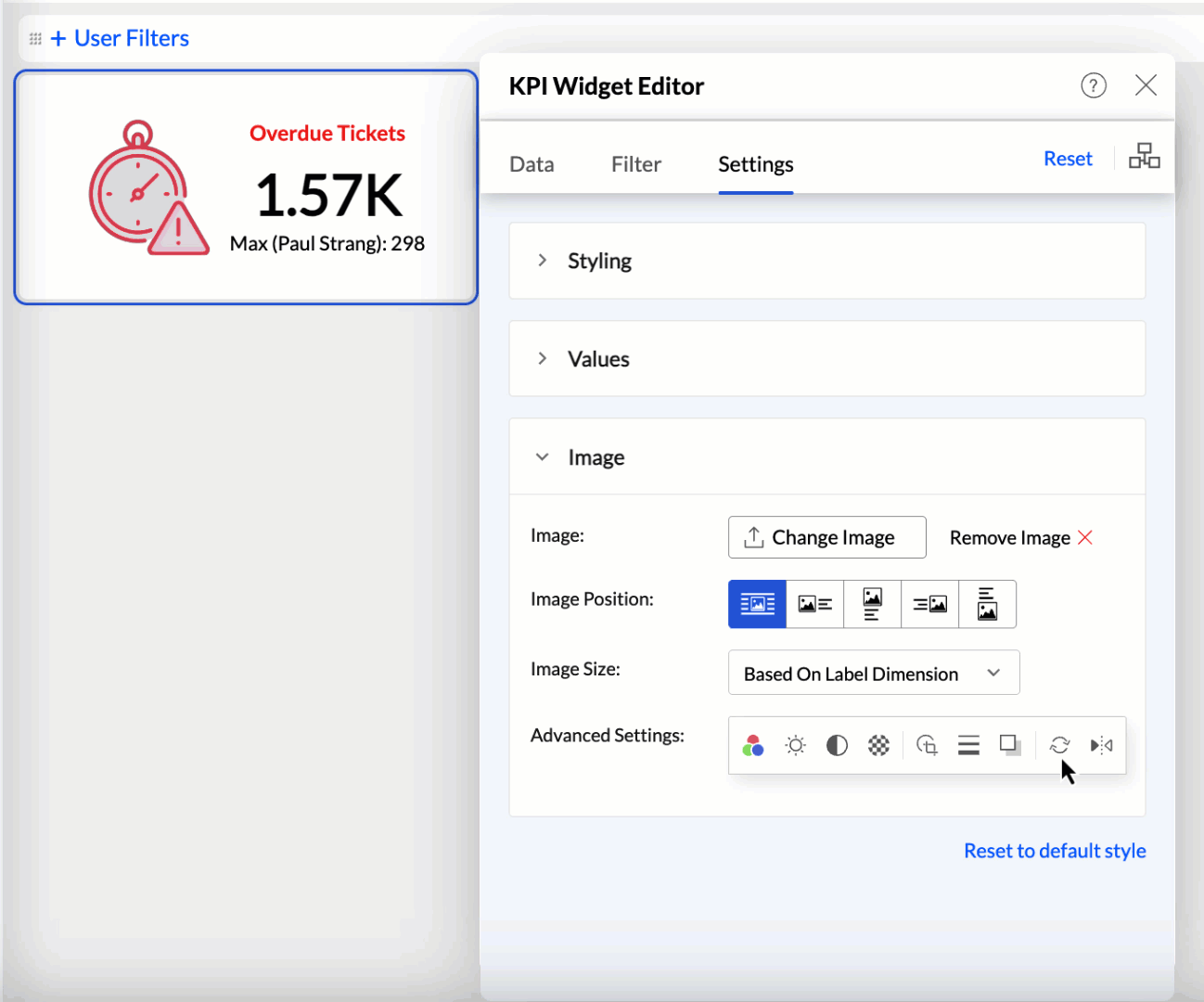

   • Use the Rotate and Flip options to change the orientation for better alignment and fitting within the dashboard layout.

8. Click Apply.


Creating Widgets with Dynamic Images

To create widgets with images,

• You need a column that has the images (URLs of image addresses).
• Each image's size should not exceed 200KB.
• The Display as option under the Format Column menu must be set to Image.

The below presentation shows how to create widgets with images

 Modifying Labels/Text in KPI Widgets

Zoho Analytics allows you to customize the Labels and Value for widgets. You can either leave it empty, enter a data, or add a dynamic label using a parameterized format. The following are the supported formats to add a dynamic label. Same parameter will retrieve  different data based on the options set in the Show Value As option.

• ${ColumnName}.LABEL -  Displays the column name or the label that meets the value of the CALCULATION applied over the column.
• ${ColumnName}.VALUE - Displays the value derived from the CALCULATION applied over the column.
• ${OPERATION} - Displays the advanced summary function applied in Show Value As field.
• ${PERCENTAGE} - Displays the percentage of Value (Only for Full Dial).
• ${MAXVALUE} - Displays the maximum value of the chart (Only for Full Dial).

To edit the text in your KPI widget, follow the below steps:

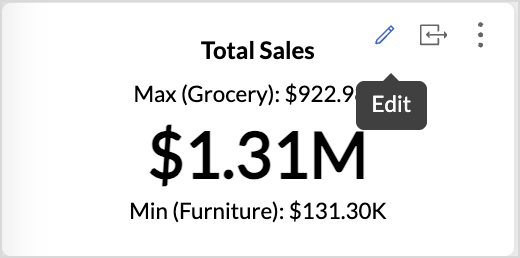

1. Click the edit icon that appears on mouse-over your widget.

2. Navigate to the Settings tab. Modify the text to be added in the Label field under the Primary Value and Secondary Values section.

3. Click Apply to make the changes.
