    Implementation

    This section only covers working with OCR in the Catalyst console. Refer to the SDK and API documentation sections for implementing Zia OCR in your application’s code.

    As mentioned earlier, you can access the code templates that will enable you to integrate OCR in your Catalyst application from the console, and also test the feature by uploading sample images and documents and obtaining the recognized text.

    Access Optical Character Recognition

    To access Optical Character Recognition in your Catalyst console:

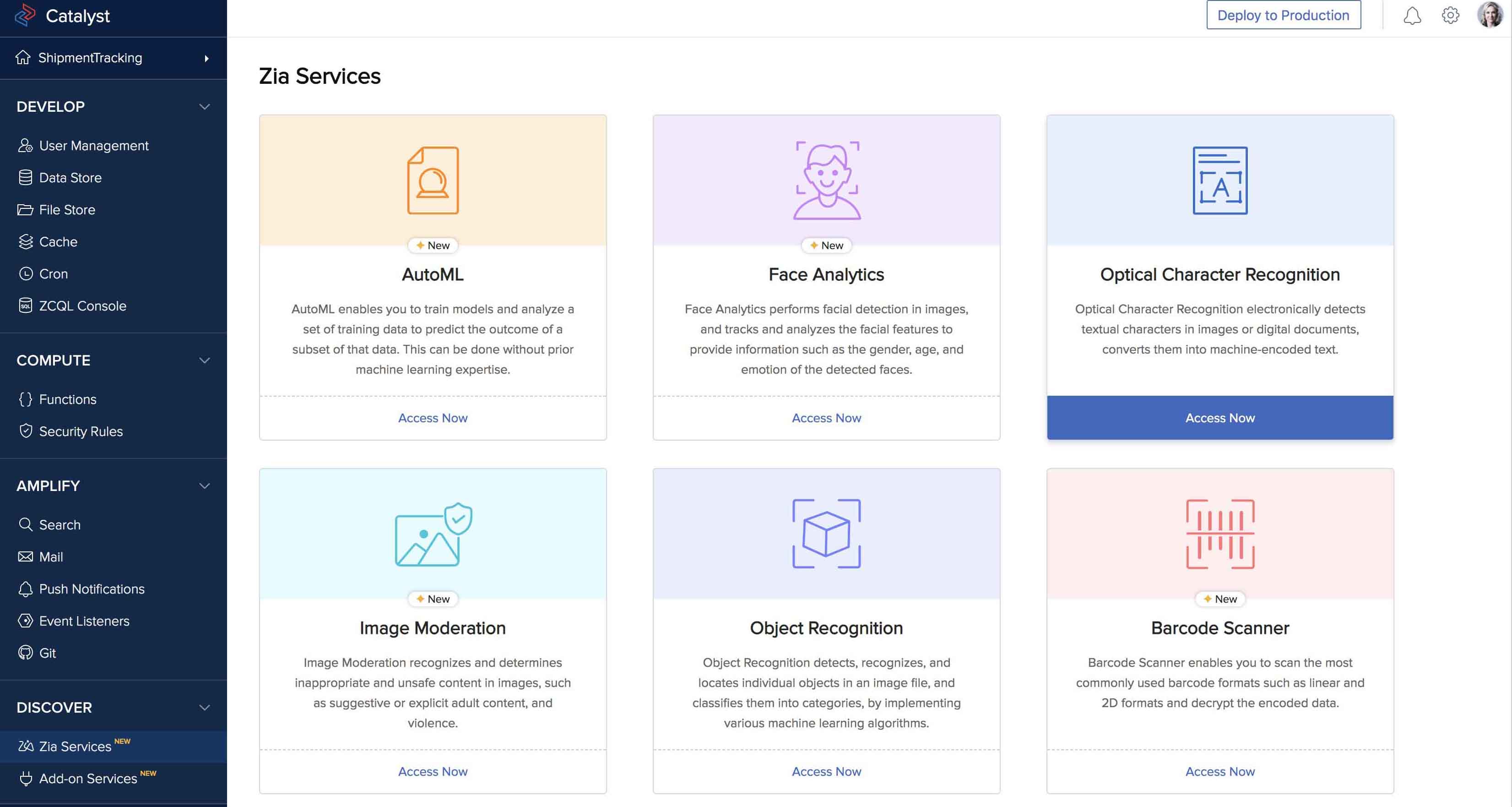

    1. Navigate to Zia Services under Discover, then click Access Now on the Optical Character Recognition window.
      catalyst_ocr_zia_page
    2. Click Try a Demo in the Optical Character Recognition feature page.

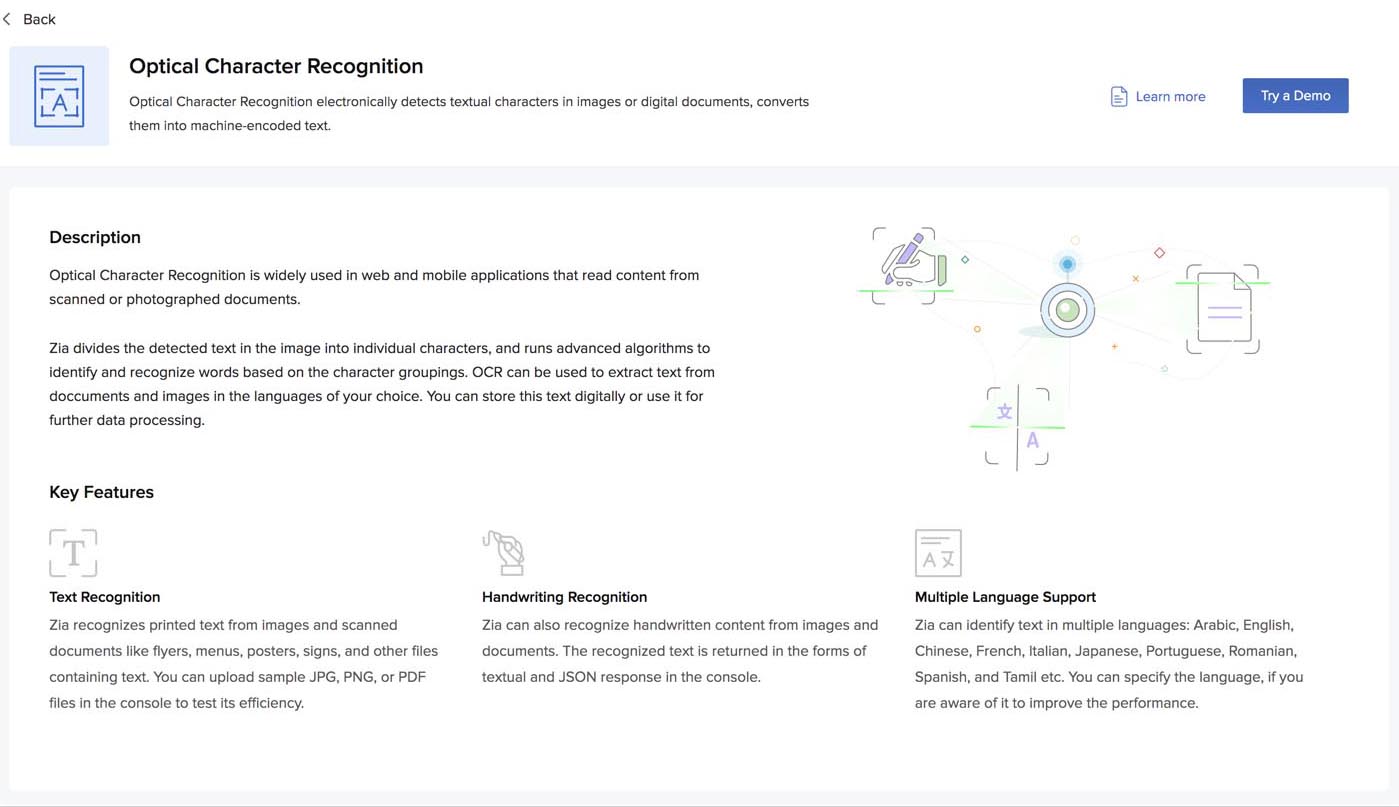

      catalyst_ocr_index_page

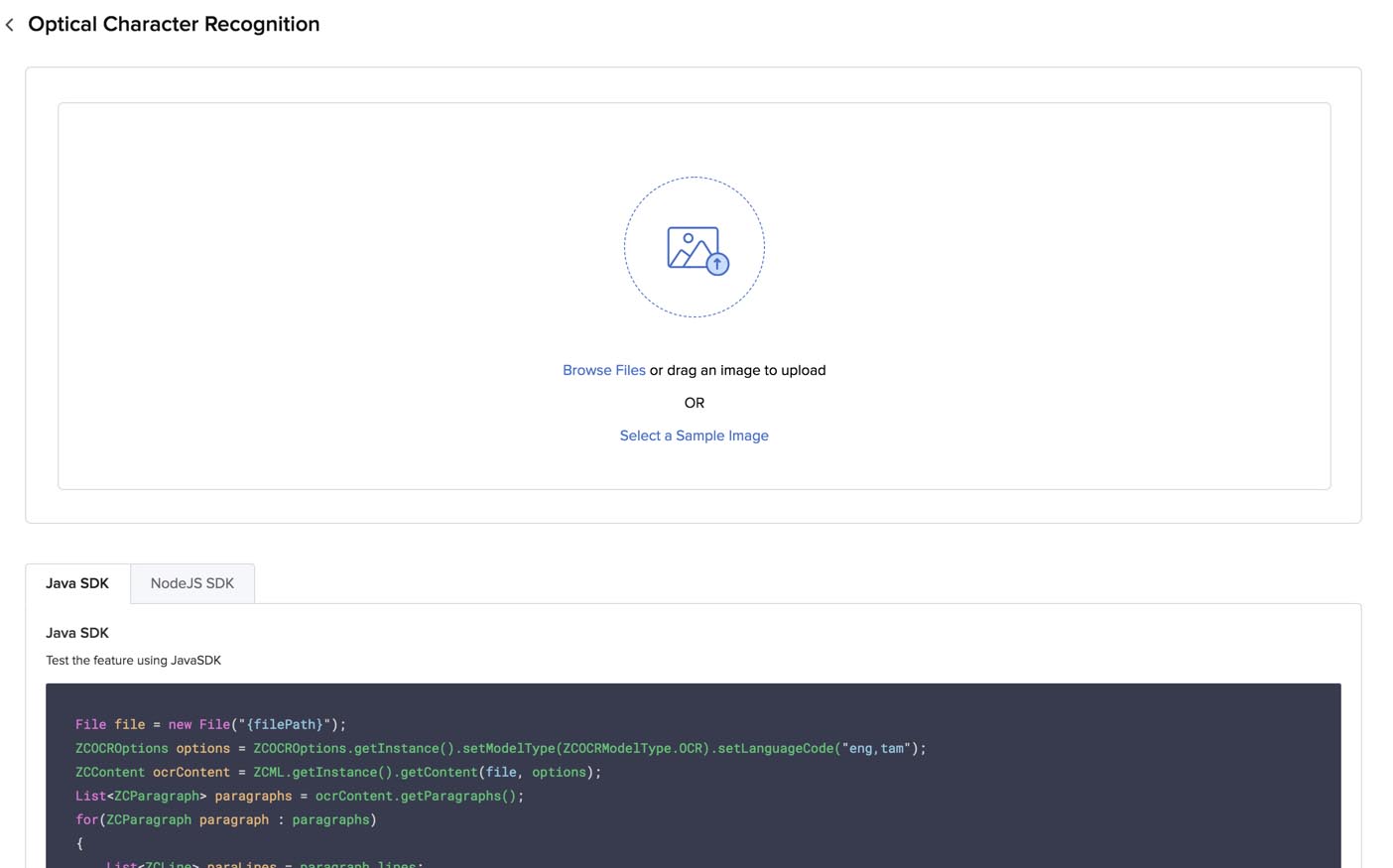

      This will open the Optical Character Recognition feature.
      catalyst_ocr_test_page

    Test Optical Character Recognition in the Catalyst Console

    You can test OCR by either selecting a sample image or PDF file from Catalyst or by uploading your own file.

    To process a sample file and obtain the results:

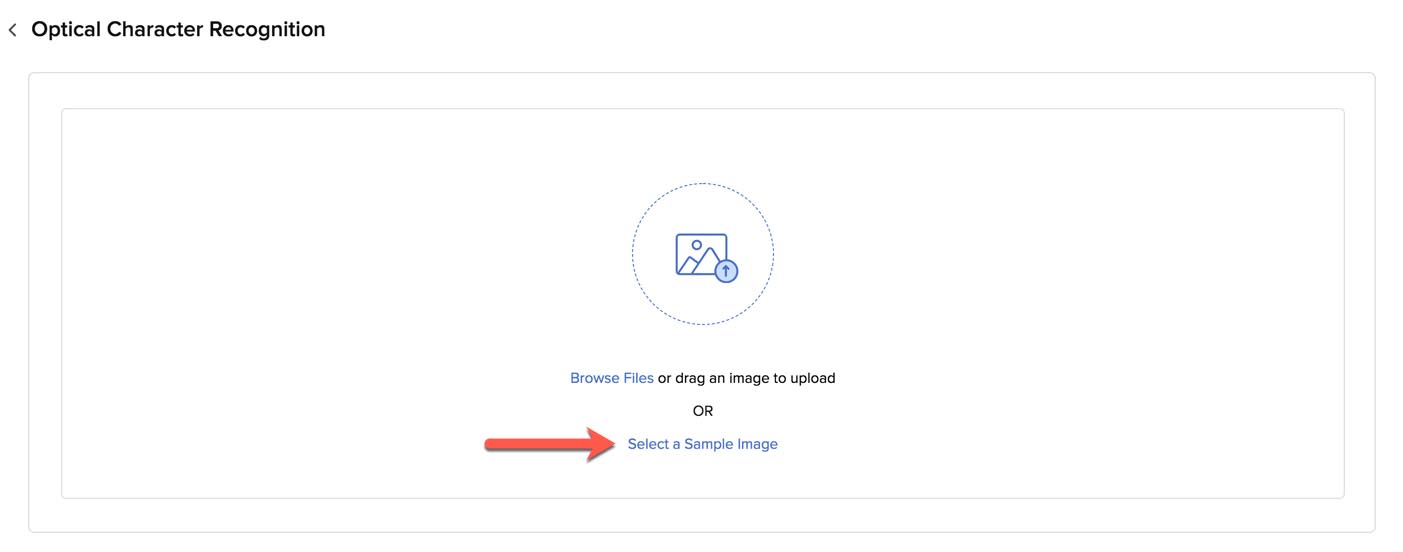

    1. Click Select a Sample Image in the box.
      catalyst_ocr_sample
    2. Select an image or a PDF file from the samples provided.

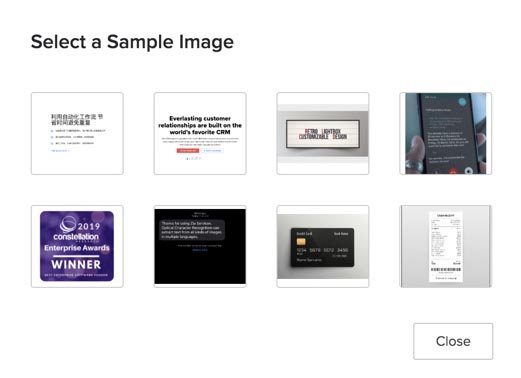

      catalyst_ocr_select_sample
      OCR will process the file, detect and identify the textual content in it. Since it is a sample file, the language the text is in and the model type is provided by Catalyst automatically.

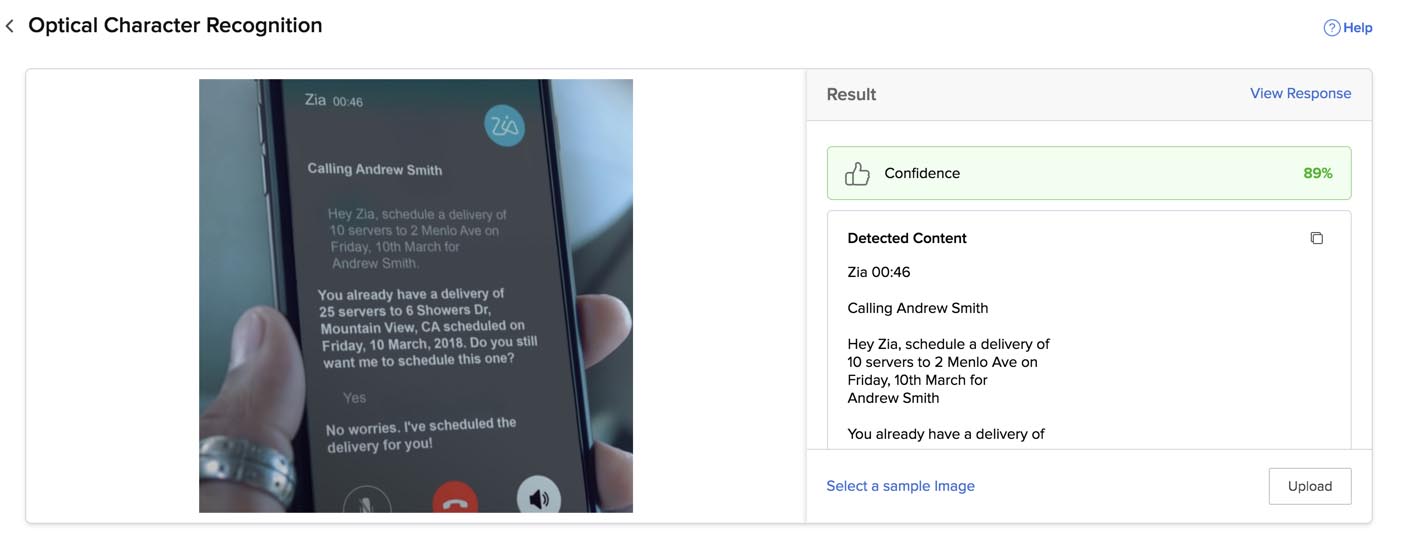

      The recognized text is displayed in the console under the Result section.
      catalyst_ocr_sample_processed

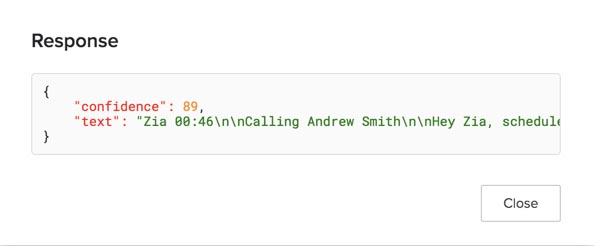

      You can view the JSON response by clicking View Response.
      catalyst_ocr_sample_json

    To upload your own image or PDF file with text:

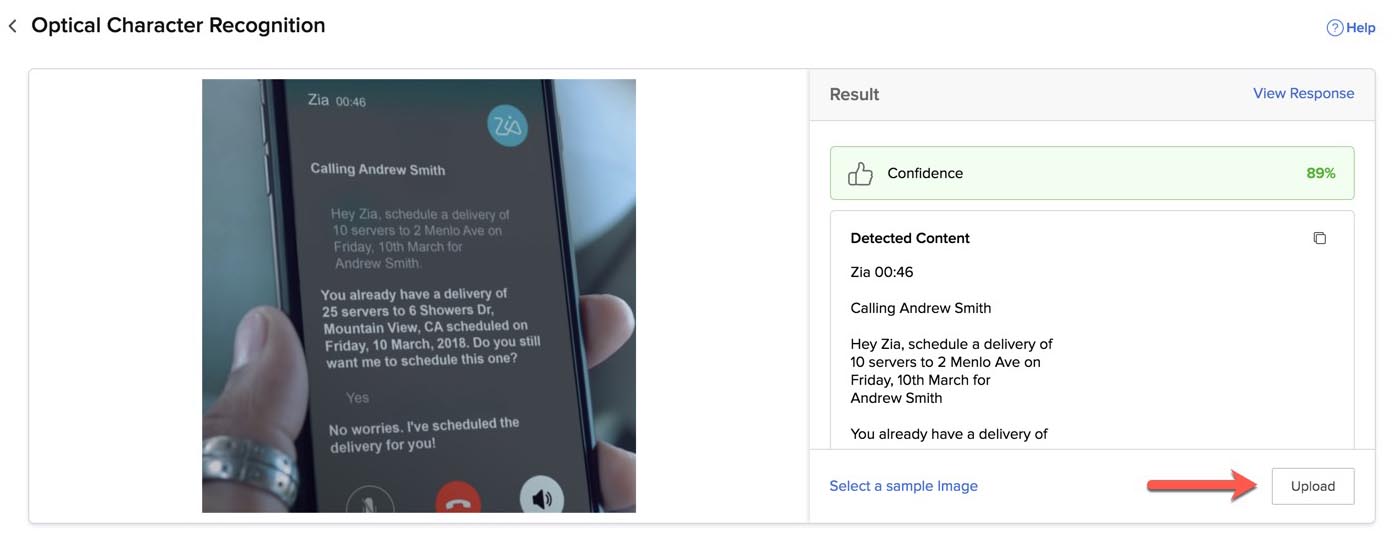

    1. Click Upload under the Result section.
      catalyst_ocr_upload
      If you’re opening Optical Character Recognition after you have closed it, click Browse Files in this box.
      catalyst_ocr_browse
    2. Upload a file from your local system.
    Note: The file must be in ._jpg_/._jpeg_, ._png_, ._bmp_, ._tiff_, or ._pdf_ format. The file size must not exceed 20 MB.
    3. Select the model type and the languages in the file's text, if you are aware of them. You can select General for the OCR model. You can select multiple languages, if the file contains text in multiple languages. catalyst_ocr_upload_options
    1. Click Proceed.

    The console will process the file and display the recognized textual content, and the confidence score if it is of the OCR model type. You can copy the recognized text using the copy icon.

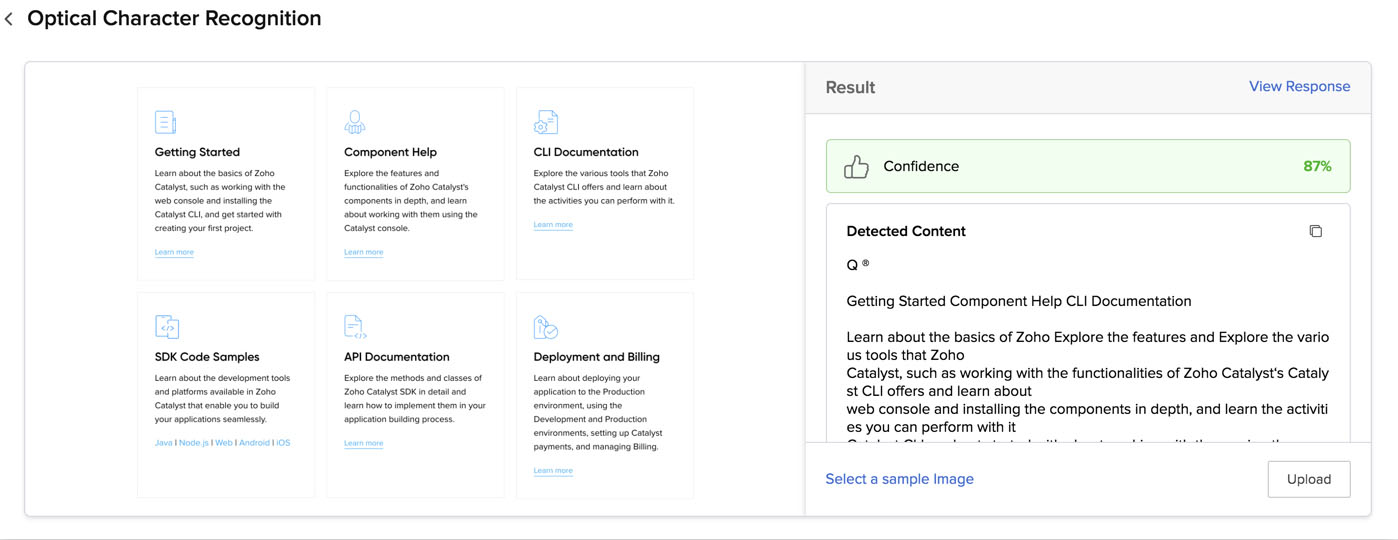

    catalyst_ocr_image_scanned

    You can check the JSON response in a similar way.

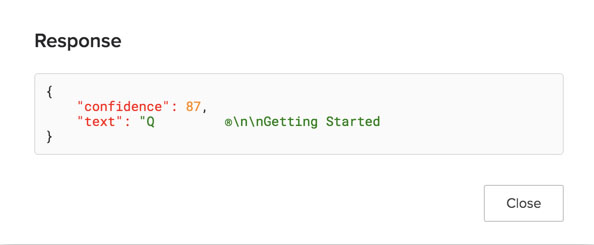

    catalyst_ocr_image_json

    Access Code Templates for Optical Character Recognition

    You can implement Optical Character Recognition in your Catalyst application using the code templates provided by Catalyst for Java and Node.js platforms.

    You can access them from the section below the test window. Click either the Java SDK or NodeJS SDK tab, and copy the code using the copy icon. You can paste this code in your web or Android application’s code wherever you require.

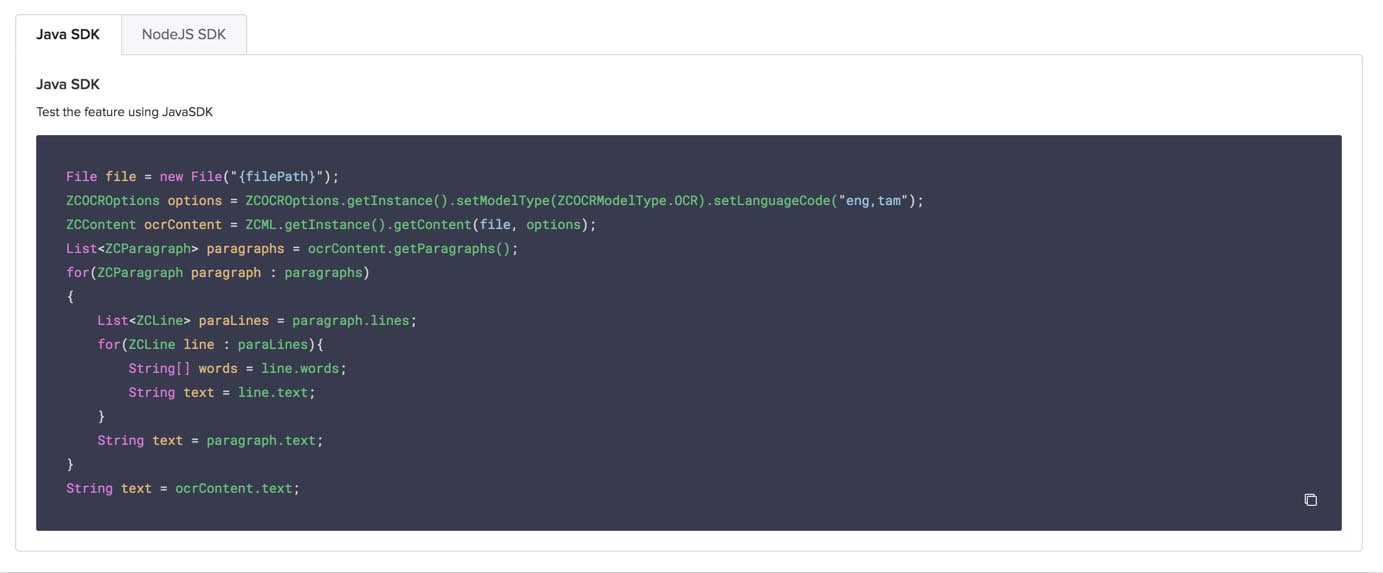

    catalyst_ocr_java

    In Java, you can process the input file as a new File, specify the model type using ZCOCRModelType and the languages using setLanguageCode. Refer to the API documentation for the keys of the supported languages and model types.

    As mentioned earlier, you can format the JSON response that you receive. The Java code enables you to obtain specific paragraphs, individual lines in a paragraph, or individual words in a line.

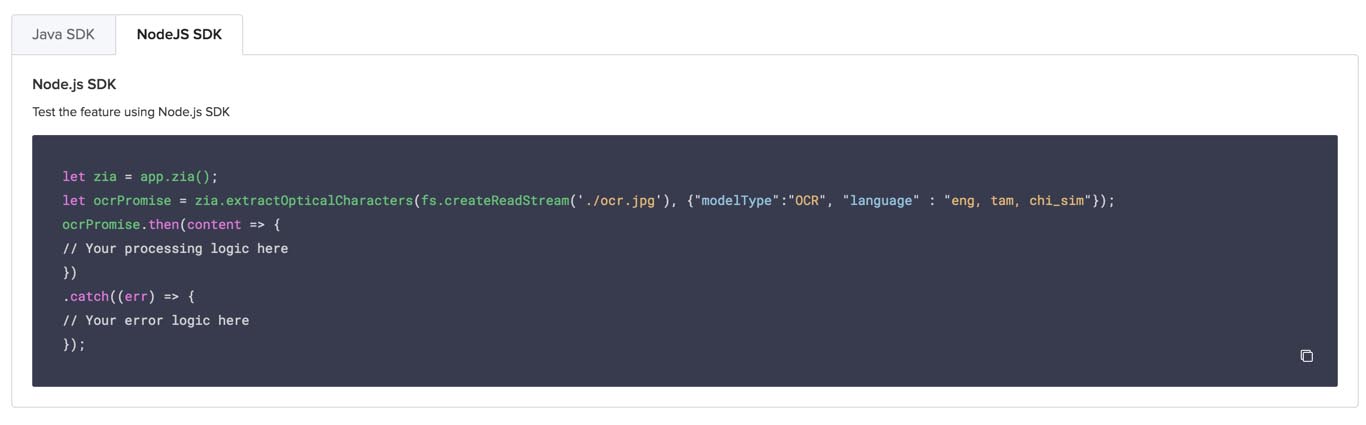

    catalyst_ocr_node

    The Node.js code processes the input file as the object ocrPromise. You can provide the input file name, set the model type using modelType, and the languages using language.
