Self Client - Authorization code flow

Step 1: Generate an authorization code

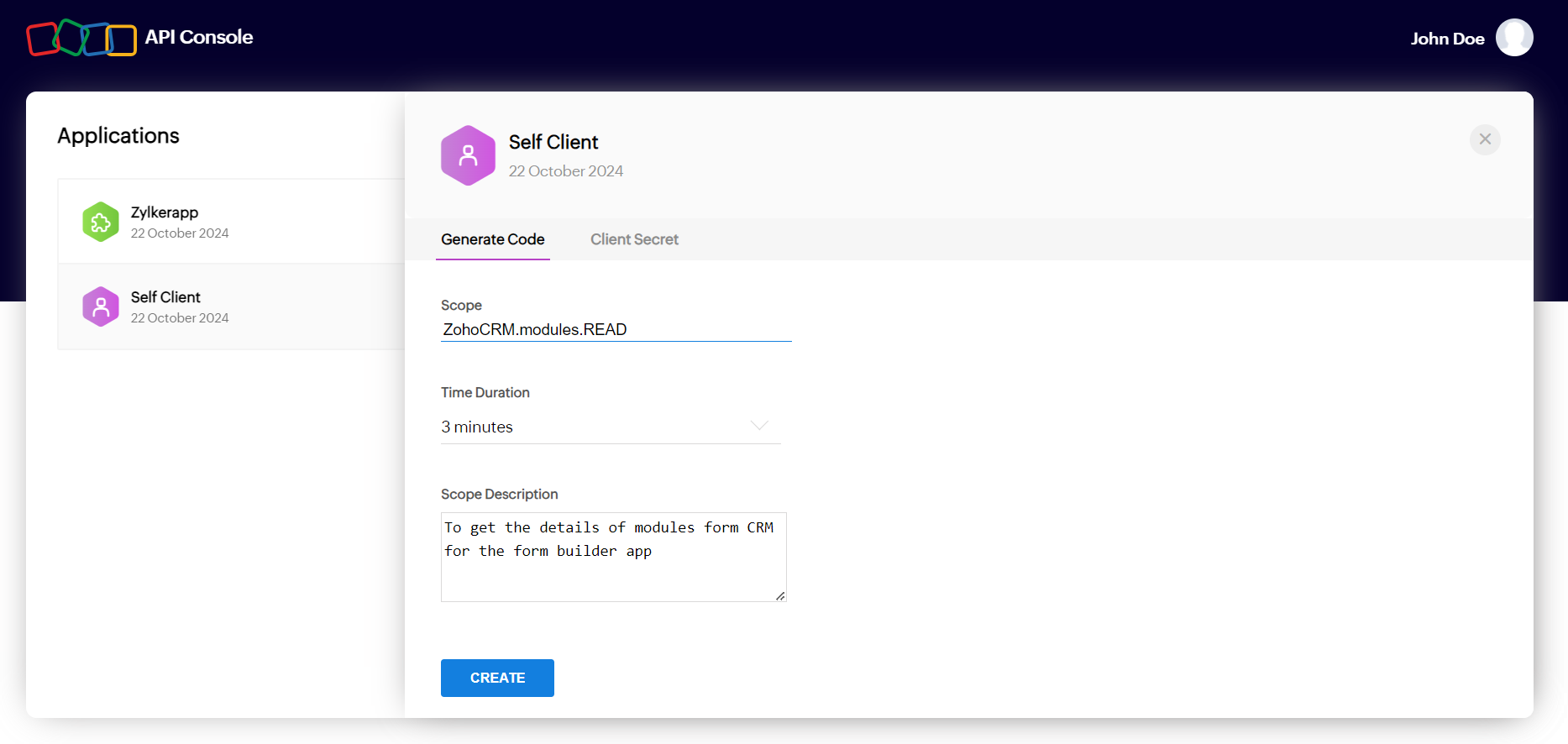

Go to the created self client in the API console.
In the Generate Code tab:
- Enter the scopes your app needs to access. Use commas to separate multiple scopes. You can refer to the respective product's API documentation for the required scopes.
- Select an expiry time for the authorization code. By default, it is 3 minutes.
- Enter a description for the required scopes.
Click CREATE.
If prompted, select the Zoho app and then select the required portal the app needs to access.
Click CREATE. An authorization code will be generated and displayed.
Copy or download the authorization code.

Step 2: Get access token and refresh token

Exchange the authorization code for an access token and a refresh token.

Endpoint

CopiedPOST 		{accounts-server-url}/oauth/v2/token

Note: The accounts-server-url is specific to the location (i.e., datacenter) where the client is registered. See all the server-specific URLs

Query parameters

Parameter	Description
client_id	required A unique ID displayed under Self Client > Client Secret.
client_secret	required A unique confidential secret displayed under Self Client > Client Secret.
grant_type	required Should be passed with the value authorization_code.
code	required The authorization code generated in the previous step.

Request example

Copiedhttps://accounts.zoho.in/oauth/v2/token
?client_id=1000.XMDEG1KBDO9SE2IFTMDFSRPYYJ5L0U
&client_secret=1632308b34e2cf614fed922c5d6c4193c7778a5f13
&grant_type=authorization_code
&code=1000.406a3b53bad3f6824d4fb43108604cd7.a74aef3010243f0fae78111e2a673847

Response parameters

Parameter	Description
access_token	An authorized key that can be used by your application to access the required resource (mentioned in the scope). Validity: 1 hour.
refresh_token	A special token that can be used by your application to refresh the access token once it is expired. This token won't expire.
api_domain	The domain the app needs to make service API requests to.
token_type	Indicates the type of access token that is generated. The token type that is used in Zoho's OAuth implementation is Bearer.
expires_in	Indicates the time (in seconds) in which the access token will expire.

Response example

Copied{
    "access_token": "1000.875cf8ea310ae70c6fb26e25a5a48df0.be3bc88ab282cd58c6fd32f110c53c61",
    "refresh_token": "1000.ce79a5110c4097744b17aecbb95dcfeb.db3167fy73ca0082fa4f6182474fc80e",
    "api_domain": "https://www.zohoapis.in",
    "token_type": "Bearer",
    "expires_in": 3600
}

Step 3: Use access token to make API calls

Make request calls to the service you want to access through the api_domain you get from the response of the access token request. Using an access token, you can access the resource for an hour, after which it will expire. To get a new access token, use the refresh token (see Step 4).

Step 4: Refresh the access token when it expires

When an access token expires, get a new access token using the refresh token.
