Radio buttons

Radio buttons in Cliq forms allow the users to choose one item from the list of all possible options. Given below is a table containing the attributes for the input field. All the mandatory parameters are indicated with a *.

Attribute NameData TypeDescription
type*String
Value should be radio
The type of the input field. Value of the field should be radio.
name*String (50)A unique identifier for the field. Upon submitting a form, value defined for the key will be available in the function associated with the form.
label*String (50)Denotes the display name of the field
hint*String (100)Provides a brief description about the possible and the expected output.
options*Array (2-5)

An array of JSON object following the structure label and value.

Note: The maximum number of elements allowed are 5.

FORMAT

{
label: $label, (Maximum allowed characters: 100)
value: $value (Maximum allowed characters: 50)
}

(or)

{
options:[{label, value}]
}

valueString (50)Provide a default input for the field by giving the value of any drop-down list item.
mandatory Boolean

Defines if the field requisite is mandatory or not.

Note: The default value is considered as false.

Syntax


{
"type":"radio",
"name":"",
"label":"",
"hint":"",
"trigger_on_change":false//boolean, default is set to false
"value":"",
"options":""
}

Sample Code

return {
   "type":"form",
   "title":"Customer Survey ",
   "name":"survey",
   "hint":"Help us understand what mattered most in your decision-making process.",
   "button_label":"Submit",
   "inputs":[
      {
         "label":"What influenced your choice to choose our service?",
         "name":"radio",
         "hint":"Select the primary reason you chose us.",
         "mandatory":false,
         "type":"radio",
         "options":[
            {
               "value":"pricing",
               "label":"Pricing"
            },
            {
               "value":"features",
               "label":"Features"
            },
            {
               "value":"CustomerReviews",
               "label":"Customer Reviews"
            },
            {
               "value":"ReferralorRecommendation",
               "label":"Referral or Recommendation"
            }
         ]
      }
   ],
   "action":{
      "type":"invoke.function",
      "name":"function"
   }
};

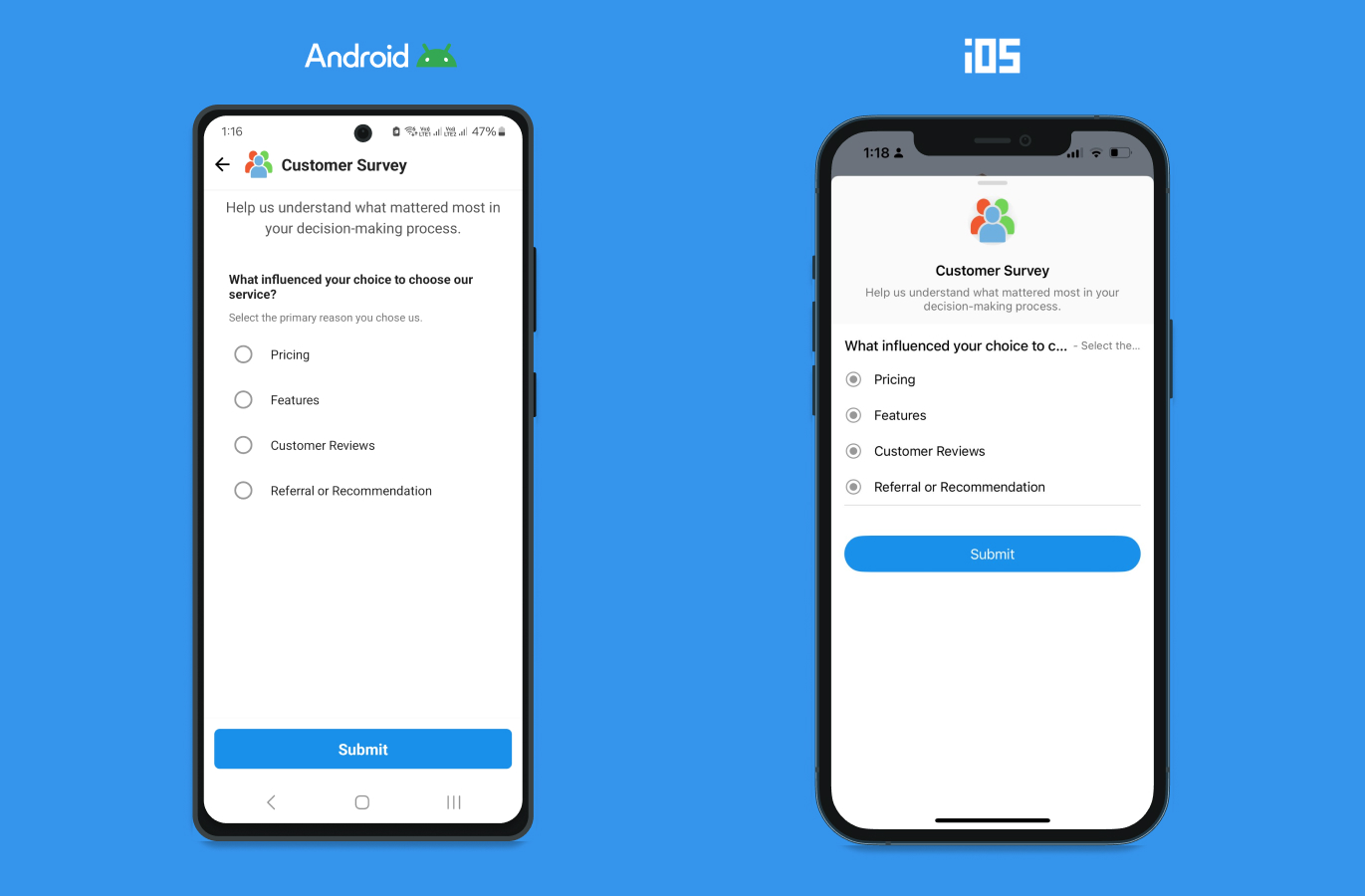

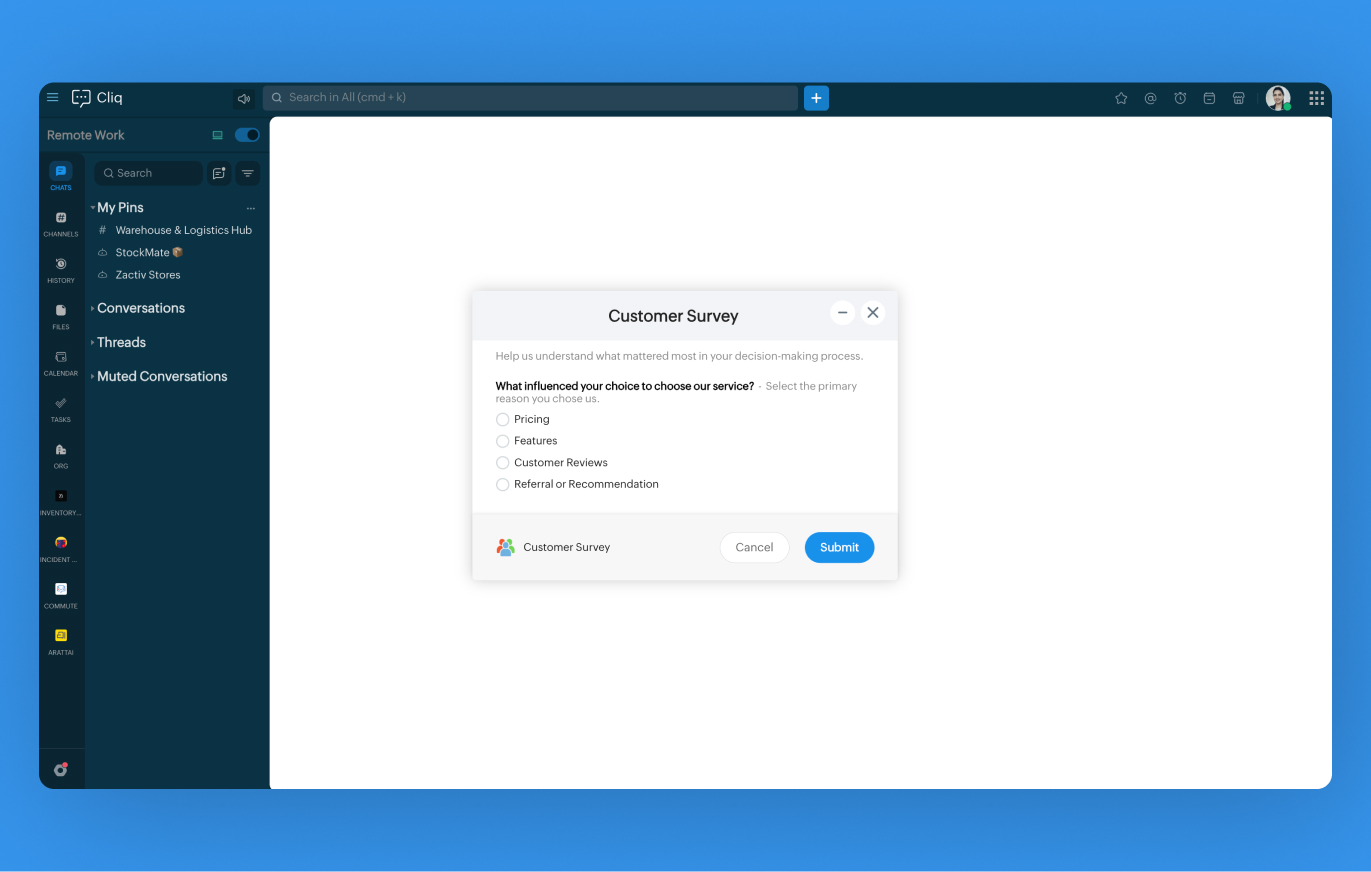

Customer Satisfaction surveys with Cliq Forms and radio buttons
